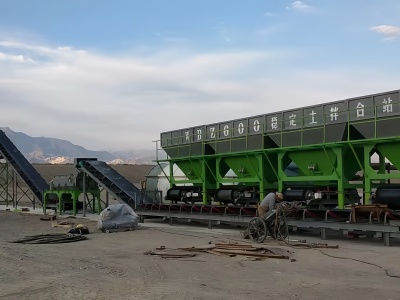

WBZ600 Stabilized Soil Mixing Plant

WBZ600 Stabilized Soil Mixing Plant for Large-Scale Road Construction

The TXMixing WBZ600 stabilized soil mixing plant is designed for continuous production of stabilized base materials used in highway, railway and municipal infrastructure projects. It combines aggregate batching, cement metering, water supply, continuous mixing and finished material handling into a coordinated production line.

For large construction projects, maintaining a consistent supply of road base materials requires more than a high-capacity mixer. Aggregate feeding, binder supply, water addition and finished-material discharge all need to work together throughout production.

The WBZ600 brings these processes together through dedicated batching, conveying and mixing equipment, with a centralised control arrangement for managing production operations.

Key Features of the WBZ600 Stabilized Soil Mixing Plant

Continuous Twin-Shaft Mixing

The WBZ600 uses a twin-shaft continuous mixing system to combine aggregates, soil, cement and water. The mixing blades move materials through the mixing chamber, helping distribute the different ingredients throughout the mixture.

This continuous mixing arrangement is designed for road base material production, where a coordinated supply of raw materials and finished mixtures is important to the construction schedule.

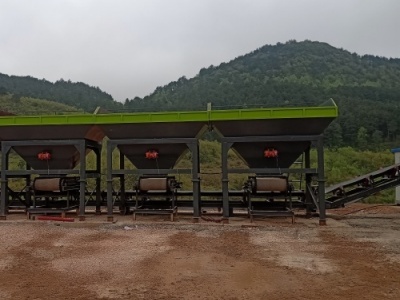

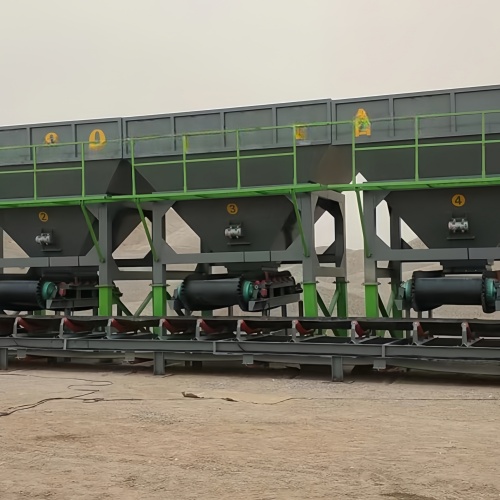

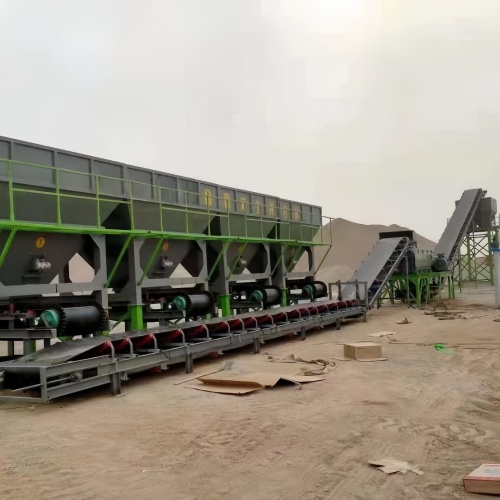

Four-Compartment Aggregate Batching System

The aggregate batching system uses four separate storage compartments, allowing different aggregate grades to be stored and fed independently.

Each compartment is equipped with a belt feeding arrangement, drive motor and weighing components. This allows the supply of different aggregate materials to be coordinated according to the required mix proportions.

For projects using several aggregate fractions, the batching arrangement should be matched to the approved grading requirements and the characteristics of the incoming materials.

Dedicated Cement Metering and Conveying

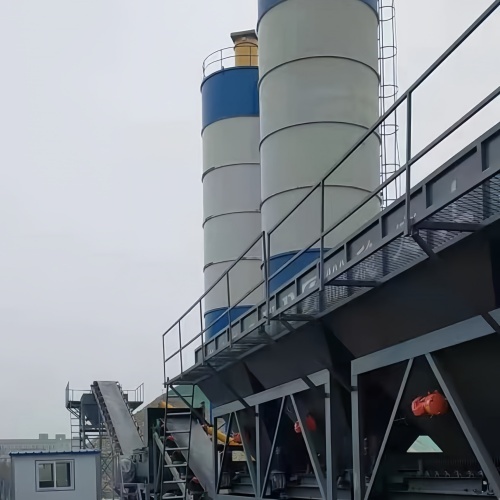

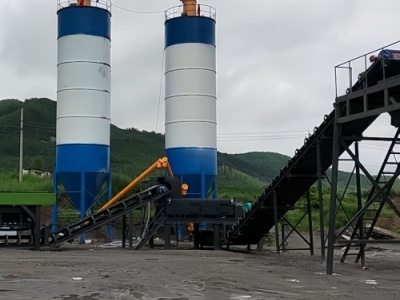

The cement supply system combines a weighing hopper, screw conveying equipment and bulk cement storage. This provides a dedicated route for transferring cement into the production process.

Separating powder supply from aggregate feeding helps organise the material handling process and allows cement addition to be coordinated with aggregate and water supply.

For projects using additional binders such as fly ash or lime, confirm the required storage and metering arrangements when specifying the final configuration.

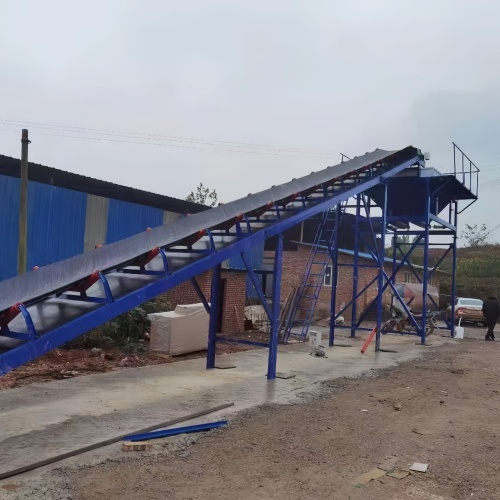

Coordinated Feeding and Discharge Conveyors

The equipment configuration includes separate feeding and discharge belt conveyors. These handle material transfer at different stages of production.

The feeding conveyor transfers batched materials towards the mixing section, while the discharge conveyor handles finished material after mixing. This arrangement helps connect the main equipment sections into a continuous production workflow.

Finished Material Storage

A dedicated finished-material hopper is included in the configuration. It provides an intermediate receiving point for mixed material before loading and transportation.

For road construction projects, the loading arrangement should be coordinated with truck availability and the distance between the mixing plant and paving operation.

Centralised Automatic Control

The WBZ600 configuration includes a fully automatic integrated control cabinet with internal equipment cabling and a separate operator room.

This arrangement brings the main production equipment under centralised operation. Operators can manage the production process while monitoring the equipment and coordinating material feeding.

Applications of the WBZ600 Road Base Mixing Plant

The WBZ600 is designed for producing stabilized materials used in road construction and infrastructure development.

• Highway construction: Producing cement-stabilized crushed stone and other specified base materials for highway projects.
• Railway subgrade construction: Supplying stabilized mixtures for railway foundation and supporting works.
• Municipal road projects: Producing road base materials for new roads, road expansion and reconstruction.
• Airport infrastructure: Supporting the production of specified stabilized mixtures for pavement foundation applications.
• Large infrastructure projects: Providing continuous material production for projects with substantial road base requirements.

Typical material formulations include cement-stabilized soil, lime-stabilized soil and graded aggregate mixtures. The final composition should follow the project’s engineering specifications.

How the WBZ600 Production System Works

The WBZ600 coordinates several material supply and processing stages to produce stabilized construction materials.

1. Aggregate Storage and Batching

Different aggregate grades are stored separately in the batching compartments. Feeding and weighing components control the supply of each material according to the selected mix proportions.

2. Cement Supply and Metering

Bulk cement is stored in the supporting cement silo and transferred through screw conveying equipment to the weighing system. The measured cement is then supplied to the mixing process.

3. Water Supply

The water supply system uses a dedicated pump and pipeline arrangement. Water addition is coordinated with the other material feeding operations according to the required mix design.

4. Continuous Mixing

Aggregates, cement and water enter the twin-shaft mixing system, where the materials are combined to produce the required stabilized mixture.

5. Finished Material Discharge

The mixed material is transferred through the discharge conveyor to the finished-material receiving hopper before being loaded for transportation.

Supporting Equipment and Configuration

When evaluating a WBZ600 mixing plant, buyers should review the complete equipment configuration rather than considering the main mixer alone.

The supplied configuration includes several important supporting systems:

• Aggregate batching: Four aggregate storage compartments with independent feeding arrangements.
• Main mixing unit: WBZ600 mixing equipment with a dedicated drive and high-wear-resistant alloy blades.
• Material conveying: Separate feeding and discharge belt conveyors.
• Cement supply: Cement weighing equipment, screw conveyor and horizontal cement silo.
• Water supply: Water pump and connecting pipeline.
• Pneumatic system: Air compressor, solenoid valve, oil-water separator and associated connections.
• Control system: Fully automatic integrated electrical control cabinet and operator room.

Confirm the standard and optional equipment included in the quotation, especially when the project requires additional powder materials, dust collection or specific automation functions.

What to Consider Before Installing a WBZ600

For a production line of this scale, installation planning needs to account for the equipment arrangement and the complete material handling process.

Site Preparation

Review ground conditions, equipment foundations, drainage and the available installation area. Foundation drawings should be checked before construction begins.

Raw Material Storage

Plan separate storage areas for aggregate grades and sufficient access for loaders and material delivery vehicles. Cement storage and powder conveying connections should also be considered.

Electrical and Water Supply

Confirm the electrical supply, cable routing, control room connections and water supply requirements according to the approved equipment configuration.

Finished Material Transportation

Truck access and loading efficiency can influence the actual production schedule. Consider vehicle capacity, loading time, haul distance and the rate at which the construction site consumes finished materials.

Maintenance Access

Allow sufficient working space around the mixing unit, belt conveyors, screw conveyor and weighing equipment. This makes routine inspection, cleaning and component replacement easier to organise.

How to Select the Right Stabilized Soil Mixing Plant

When comparing WBZ models, consider the actual material demand and operating conditions of your project.

• Project output requirements: Estimate the daily volume of stabilized material needed and the available production hours.
• Aggregate grading: Identify the number of aggregate fractions and the maximum particle size required by the mix design.
• Binder requirements: Confirm whether the production process uses cement alone or requires additional binders.
• Weighing requirements: Check the required aggregate, cement and water metering accuracy against project specifications.
• Equipment configuration: Review the mixer, batching equipment, conveyors, storage hopper and control system together.
• Site and transport conditions: Consider foundation requirements, raw material delivery and finished-material loading arrangements.

Providing the approved mix design and project layout to the manufacturer helps determine whether the standard WBZ600 configuration needs adjustment.

Compare WBZ Stabilized Soil Mixing Plant Models

TXMixing offers several WBZ models for projects with different stabilized material production requirements.

• WBZ300 Stabilized Soil Mixing Plant – For projects with lower material supply requirements.
• WBZ400 Stabilized Soil Mixing Plant – For medium-to-large road construction operations.
• WBZ500 Stabilized Soil Mixing Plant – For projects requiring a higher production configuration.
• Stabilized Soil Mixing Plant Range – Explore other available production configurations.

Frequently Asked Questions

What is the WBZ600 stabilized soil mixing plant used for?

It is designed for continuous production of stabilized road base materials used in highway, railway, municipal road and other infrastructure projects.

What materials can the WBZ600 process?

The plant is suitable for processing soil, sand, gravel and other aggregates with cement, lime and water. The specific formulation depends on the project’s approved mix design.

Does the WBZ600 include an automatic control system?

Yes. The supplied configuration includes a fully automatic integrated control cabinet and a dedicated operator room. Confirm the detailed control functions and software scope in the final technical agreement.

What equipment is included in the cement supply system?

The documented configuration includes a horizontal cement silo, screw conveyor, weighing hopper and associated weighing components.

Does the WBZ600 include finished material storage?

Yes. The configuration includes a finished-material hopper for receiving mixed material before loading and transportation.

What information should I provide when requesting a quotation?

Provide your project location, required material output, aggregate grading, binder types, approved mix design, site conditions and preferred equipment configuration. These details help the manufacturer prepare a suitable proposal.
