I. Core Equipment Configuration of HZS120 Batching Plant
The HZS120 concrete batching plant, as a mainstay model for medium-sized commercial mixing stations, includes three core systems in its standard configuration:
1. Mixer System
- Model: JS2000 twin-shaft forced mixer
- Technical Parameters:
- Rated Power: 2 × 37 kW
- Mixing Capacity: 2000 L/batch
- Theoretical Cycle Time: 60 seconds
- Discharge Height: 4.2 meters
- Performance Features:
- High-chromium alloy blades with hardness of HRC58–62
- Liner service life: 80,000–100,000 cycles
2. Aggregate Batching System
- Standard Configuration: PLD3200 four-hopper batching machine
- Metering Range: 0–4000 kg
- Metering Accuracy: ±2%
- Aggregate Storage Capacity: 4 × 20 m³
- Upgrade Options:
- Five-hopper independently weighed batching machine (for one additional aggregate type)
- Winter heating function (normal operation at -20°C)

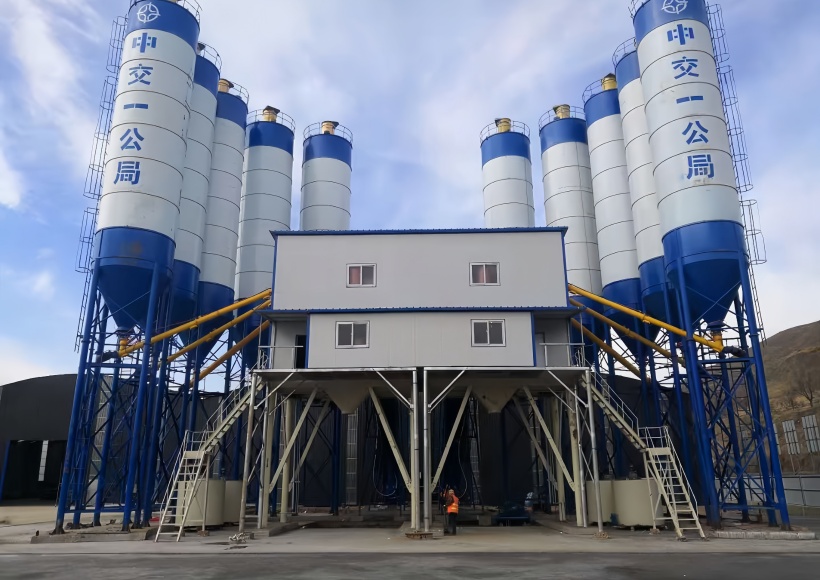

3. Powder Storage System
- Basic Configuration:
- Cement Silos: 4 × 100 t (diameter Φ3 m)
- Screw Conveyors: Φ273/219 mm
- Recommended Configuration for Commercial Stations:
- 4 powder silos (for storing different grades separately)
- Anti-arching devices
- Pulse jet dust removal system (dust concentration <20 mg/m³)

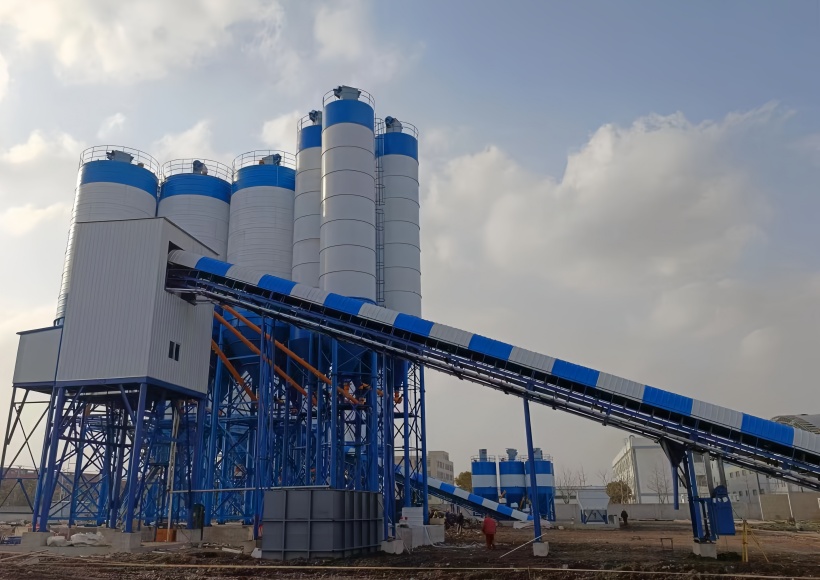

4. Aggregate Conveying System
- Standard Configuration:
- 800–1000 mm width conveyor belt
- 37 kW motorized drum
- Belt cleaning device
- Belt tensioning device
II. Technical Guide for Equipment Selection
1. Mixer Selection Key Points
- Temporary Projects: Domestically produced JS2000 mixer (lower cost)
- Commercial Concrete Stations: Recommended SICOMA MAO2000/3000 mixer (low failure rate, high durability)
- Special Projects: Requires mixers compatible with large-diameter aggregates
1. Batching System Selection
Configuration Type | Applicable Scenario | Price Range (10,000 RMB) |
Four-Hopper Independent Weighing | Engineering Projects | 13-15 |
Five-Hopper Independent Weighing | Commercial Stations | 17-19 |
Four-Hopper Cumulative Weighing | General Projects | 9-10 |
3. Powder System Configuration Suggestions
- Number of Cement Silos:
- Basic Projects: 3 silos (PO32.5 cement + fly ash + mineral powder)
- Commercial Stations: 4 silos (PO32.5 + PO42.5 cement + fly ash + mineral powder)
- Standard Choice: Φ273 mm (cement) + Φ219 mm (fly ash, mineral powder)
4. Conveyor System Recommendations
- Commercial Stations: 1000 mm width conveyor (longer service life, no material spillage)
- Engineering Projects: 800 mm width conveyor (lower cost)
III. Equipment Layout and Installation Requirements
1. Basic Layout Schemes
- Linear Layout:
- Land Area: 55 m × 20 m
- Features: Smooth logistics, easy maintenance
- L-Shaped Layout:
- Land Area: 48 m × 35 m
- Features: Space-saving, suitable for constrained sites
2. Key Installation Parameters
- Foundation Bearing Capacity: ≥150 kPa
- Embedded Part Precision: Flatness ≤3 mm/m
- Power Configuration:
- Total Power: ~230 kW
- Voltage Fluctuation: ±5%
IV. Equipment Maintenance Guidelines
1. Daily Maintenance Checklist
- Mixer:
- Check blade clearance (3–5 mm)
- Clean after each shift
- Batching System:
- Check cylinder seals (weekly)
- Powder System:
- Check for clogging
- Inspect anti-arching devices
2. Wear Parts Replacement Cycle
Part Name | Service Life | Replacement Cost ( RMB) |
Mixer Blades | 60,000–80,000 cycles | 5000/set |
Liners | 80,000–100,000 cycles | 12000/set |
Screw conveyor | 3-5years | 9000/unit |
For detailed technical documentation or customized solutions for the HZS120 batching plant, please contact our engineering team. We provide professional technical support and service guarantees.
