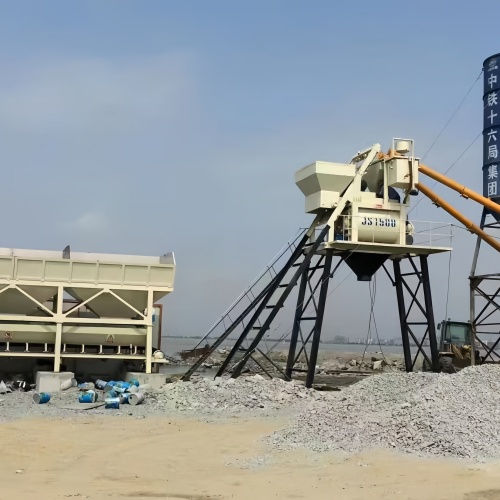

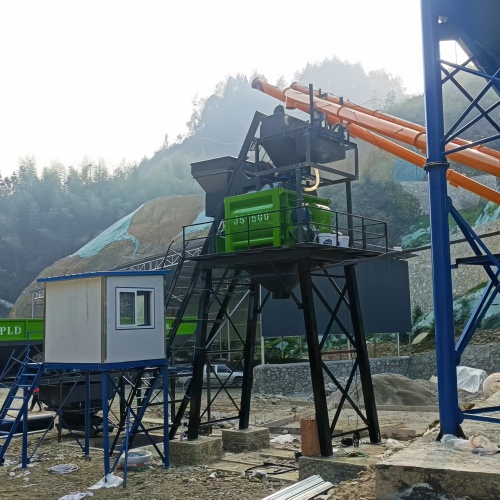

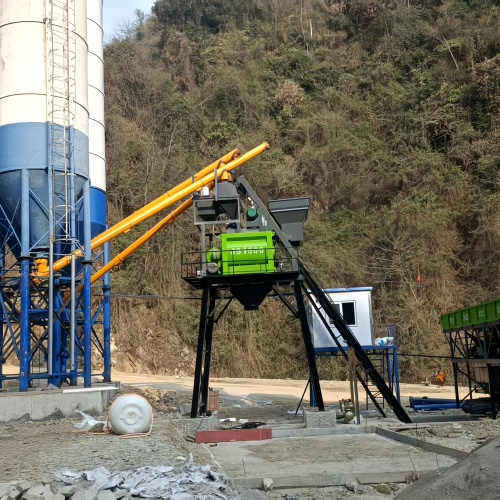

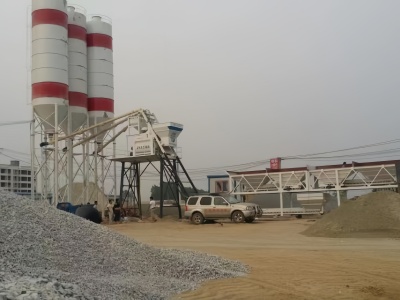

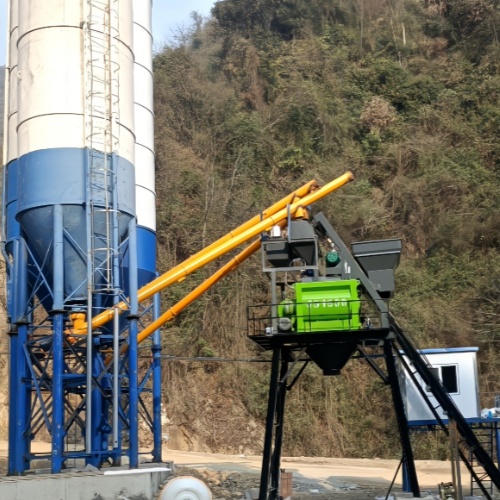

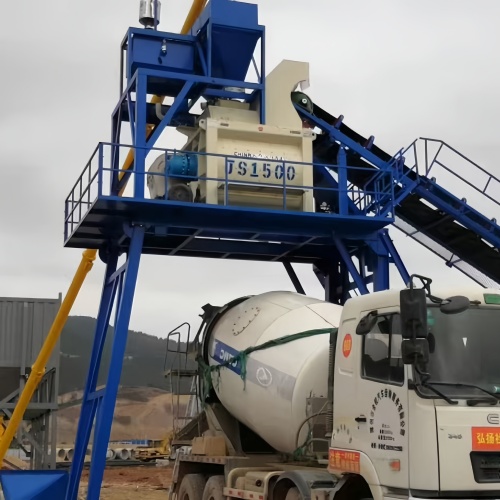

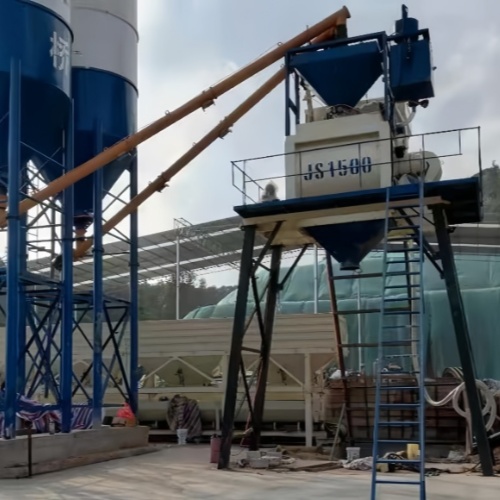

The HZS75 concrete batching plant is a medium-sized, fully automated concrete production facility with a production capacity of 75 cubic meters per hour. It utilizes a JS1500 mixer, equipped with a PLD2400 batching machine and an automatic control system, and is capable of producing concrete with a variety of mix ratios.
Key Parameters:
Output: 75 cubic meters per hour
Mixer: JS1500
Discharge Volume: 1500 liters per batch
Batching Machine: PLD2400
Powder Silos: 3 x 100ton capacity (customizable)
Control: Fully automatic
The HZS75 concrete batching plant is a medium-sized, fully automatic concrete production facility with a modular design. The core mixing unit utilizes a JS1500 twin-shaft forced mixer, offering powerful mixing power and high efficiency, ensuring uniform concrete. The batching system is equipped with a PLD2400 concrete batcher for precise batching of sand and gravel aggregates.
The plant offers two aggregate conveying methods: elevator conveying, which requires minimal floor space and investment, and belt conveyor conveying, which is stable and efficient.
Cement and fly ash are conveyed via screw conveyors, while water and admixtures are delivered via pumps. All materials are metered using high-precision gravity sensors.
The intelligent control system integrates recipe storage, automatic compensation, production monitoring, and data reporting.
The pneumatic control system uses a piston air compressor to power all pneumatic components.
The entire system offers low investment costs and a compact footprint, making it particularly suitable for projects with limited space. High-precision metering and automated production ensure consistent and reliable concrete quality, while the modular structure facilitates installation and relocation.
Typical Applications:
- Small and medium-sized ready-mix concrete batching plants
- Residential and commercial building construction
- Road, bridge, and other infrastructure construction
- Precast concrete batching plants
The HZS75 concrete batching plant offers high cost-effectiveness, reliable performance, and flexible configuration, making it an ideal choice for medium-sized concrete production projects.
HZS75 Concrete Batching Plant Key Technical Parameters
Theoretical Production Capacity | 75 m³/h | Concrete Mixer | JS1500
|
Concrete Mixer Power | 2 x 30 kW
| Batcher | PLD2400
|
Cement Silos | 3 x 100T
| Maximum Aggregate Diameter | ≤80 mm
|
Aggregate Metering Accuracy | ±2% | Cement Metering Accuracy | ±1% |
Water Metering Accuracy | ±1% | Admixture Metering Accuracy | ±1% |
Total Power | 118 kW
| Discharge Height | 3.8m |
Tongxin Machinery can provide you with a more suitable production plan based on your actual production needs and on-site conditions.
