Product Overview

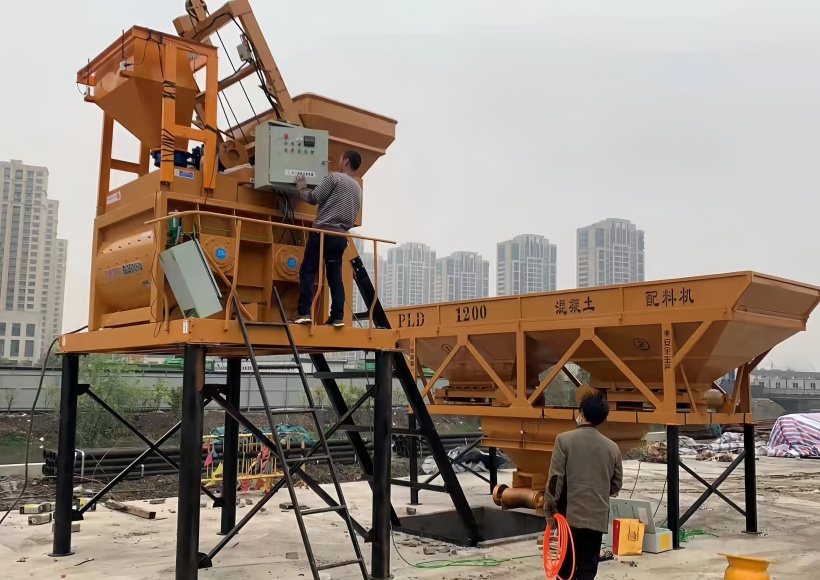

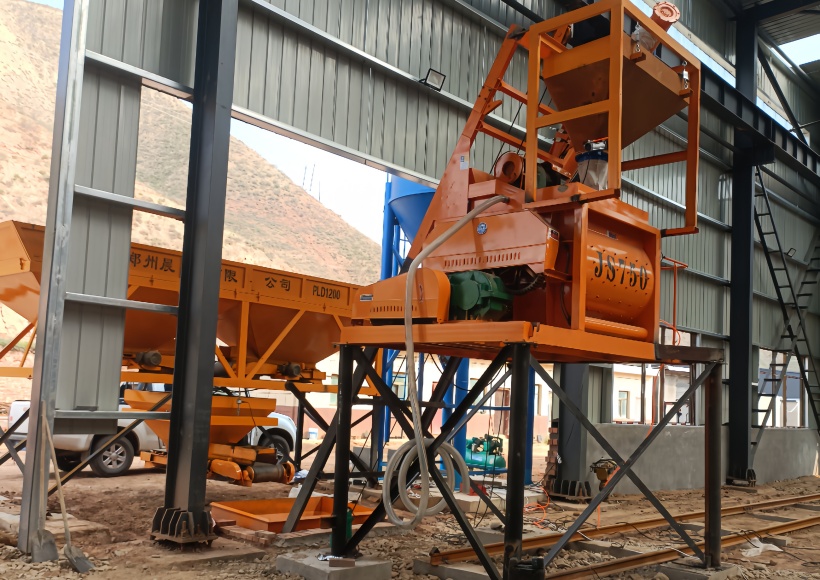

The JS750 concrete mixer is an ideal choice for medium-sized construction projects and commercial concrete production. Renowned for its excellent mixing performance, reliable operation, and competitive pricing, it is widely used in the construction industry. With an output capacity of 750 liters per batch and a theoretical production capacity of 35-40 m³ per hour, it can be paired with a PLD1200 batching machine to form a complete concrete mixing plant, meeting the concrete requirements of various medium-sized projects.
Core Technical Advantages
1. High-Efficiency Mixing System
Utilizing a twin-shaft forced mixing principle with uniquely arranged spiral blades, the JS750 creates efficient compound movement. Materials undergo continuous convection and shear during mixing, ensuring excellent homogeneity within 25 seconds—even for high-grade concrete like C60.
2. Robust and Durable Structure
The main chassis is welded from high-strength 16Mn steel with stress relief treatment, offering exceptional fatigue resistance. Mixing blades and liners are made of ZG20CrMnMo wear-resistant alloy, providing a service life of over 15,000 batches and significantly reducing maintenance costs.
3. Advanced Transmission System
Equipped with a gear reducer achieving over 95% transmission efficiency and noise levels below 75 dB. The 30 kW motor delivers ample power, supporting soft start and speed adjustment to adapt to various working conditions.
4. Intelligent Control System
Optional PLC automatic control system with recipe storage, production statistics, and fault diagnosis functions. Features a user-friendly touchscreen interface for easy operation and real-time monitoring of equipment status and production data.
JS750 Concrete Mixer Market Price Analysis
The price of a JS750 concrete mixer is influenced by several factors, including configuration grade, material selection, manufacturing process, and market demand. Below is a detailed price analysis:
Price Influencing Factors:
1. Configuration Grade: Significant price differences between basic and fully automated models.
2. Material Standards: The grade of wear-resistant materials directly impacts equipment lifespan and price.
3. Electrical Components: Prices vary considerably based on whether domestic or imported electrical parts are used.
4. Manufacturing Process: Production techniques affect equipment precision and cost.
5. Brand Value: Reputable brands offer higher quality assurance and after-sales service.
JS750 Configuration & Price Reference Table
Configuration | Level Price Range ($) | Core Features
|
Economy Model | $ 6429--$ 7143 | Basic electrical controls, 2-meter outriggers
|
Standard Model | $ 7857--$ 8571 | Pneumatic door opening, 3.8-meter discharge
|
High-End Model | $ 8286--$ 8571 | HZS35 Mixing Plant
|
Note: Prices are for the mixer unit only and exclude ancillary equipment such as conveying systems and batching machines.
Purchasing Guide
1. Needs Analysis
Determine the appropriate configuration based on project scale, daily concrete demand, and budget. Consider future expansion needs for the next 3-5 years.
2. Quality Evaluation
Focus on:
- Material and thickness of mixing blades and liners
- Brand and performance of reducer and motor
- Welding quality and anti-corrosion treatment of structural components
- Stability and functionality of the control system
3. Cost-Effectiveness Comparison
Avoid focusing solely on low prices. Consider equipment quality, service life, energy consumption, and maintenance costs. High-quality equipment may have a higher initial investment but offers lower long-term operating costs.
4. After-Sales Service
Choose suppliers providing comprehensive support, including:
- Installation and commissioning guidance
- Operation and maintenance training
- Technical support and remote diagnostics
- Guaranteed spare parts supply
Maintenance Recommendations
To ensure long-term stable operation of the JS750 mixer:
Daily Maintenance:
- Check the lubrication system and replenish grease regularly
- Clean accumulated material daily to maintain cleanliness
- Inspect wear on blades and liners
Regular Maintenance:
- Monthly checks of the transmission system and belt tension adjustment
- Quarterly inspections of the electrical system and terminal tightening
- Annual comprehensive overhaul and replacement of worn parts
Usage Precautions:
- Avoid overload operation
- Perform regular lubrication maintenance
- Stop immediately for inspection if abnormalities are detected
- Calibrate the measurement system periodically
Investment Return Analysis
Taking a standard JS750 mixer as an example:
- Equipment Investment: ~11429 $
- Daily Output: 200-300 m³
- Investment Payback Period: 4-6 months
- Expected Service Life: 3-5 years
Conclusion
The JS750 concrete mixer, with its reasonable price, reliable performance, and moderate production capacity, is an optimal choice for medium-scale concrete production. Selecting a high-quality JS750 not only ensures project quality but also delivers significant economic benefits.
Tongxin Machinery offers a variety of JS750 concrete mixer configurations. Please call us for the latest prices and special offers! Our professional engineers will provide you with selection advice and technical support to ensure you purchase the most suitable equipment.
