For the grand project of high-speed rail tunneling through mountains and hills, tunnel shielding, with its safety and efficiency, has become a core construction method. The quality of filling the gaps between the shield segments and the complex strata is directly related to the century-long safety and overall stability of the tunnel structure. The self-compacting concrete used in this area is far from ordinary concrete; it must be an "intelligent" material capable of perfectly filling and densely packing even confined spaces using only its own gravity. To meet this extremely demanding challenge, Tongxin Machinery, with its cutting-edge engineering technology, has developed a high-precision concrete mixing plant solution tailored specifically for high-speed rail tunnel shields, ensuring that every cubic meter of concrete becomes the solid "flesh and blood" of the tunnel.
Extreme Demand: Decoding the Stringent Standards of Self-Compacting Concrete for High-Speed Rail Shields
To meet the near-zero-defect requirements of shield projects, self-compacting concrete must achieve an unparalleled balance across multiple performance indicators:
1. Metering Accuracy is the Cornerstone of Performance: Precise mix proportioning is the primary prerequisite for stable concrete performance. The metering error for sand and gravel aggregates must be controlled within ±2%, while the metering accuracy for all powders (cement, admixtures, etc.) and liquid admixtures must meet the stringent standard of ±1%. Any slight deviation could trigger a chain reaction of adverse effects on flowability, strength, or durability.
2. Exceptional workability is the core principle: high flowability, excellent rebar penetration (filling properties), segregation resistance (stability), and self-leveling properties are essential. It must flow like water yet be as stable as a gel, ensuring a dense, uniform structure within complex formwork.
3. Multi-material and high strength are fundamental: To achieve the combined goals of high strength, low heat generation, and minimal expansion at C40 and above, the formulation is extremely complex. The typical mix includes up to nine components: cement, fly ash, mineral powder, expansive agent, viscosity modifier, water reducer, sand, and gravel. The use of multiple small-dose functional admixtures, in particular, places unprecedented demands on the metering and dosing systems of Tongxin Machinery's concrete mixing plants.

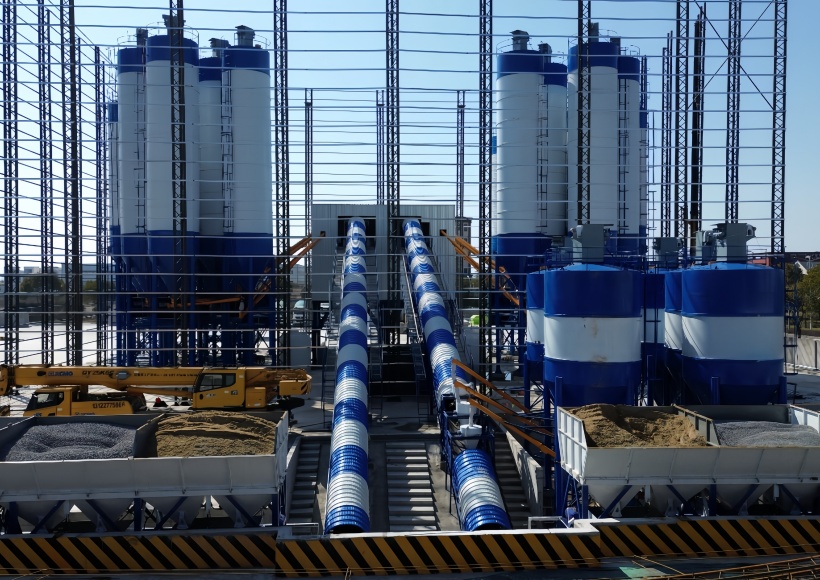

Tongxin Machinery's Solution: Breaking Through with Fully Independent Metering and Scientific Processing
Tongxin Machinery's solution directly addresses key challenges. It innovatively utilizes a comprehensive precision control system featuring 11 independent metering scales, combined with scientific material feeding technology to ensure the perfect realization of complex mix proportions.
Core Area on the Main Unit: Precisely Controls the "Soul of the Paste"
The metering scales for the four key components of concrete base paste—cement, fly ash, water, and water reducer—are centrally mounted on the top of the main unit.
- Ultimate Precision: This significantly shortens the feeding distance, completely eliminating lag, adhesion, and loss during long-distance transportation, enabling easy and stable metering accuracy of ±1%.
- Optimized Mixing: These core materials are prioritized and quickly fed into the main unit for mixing, resulting in a uniform and fine cement paste, laying a solid foundation for the subsequent uniform encapsulation and dispersion of aggregates and other functional materials.
- Environmental Protection and Sealing: The fully enclosed design effectively controls dust, meeting green production requirements.
Conveyor Functional Area: Solving the Difficulty of Feeding "Sensitive Materials"
Three functional small materials—mineral powder, expander, and viscosity modifier—are integrated into the aggregate conveyor feeder via independent weighing scales.
- Eliminates Adhesion Risks: Materials like viscosity modifiers are easily sticky. Traditional powder screw conveyors can easily cause blockage, inaccurate metering, and difficulty cleaning. Tongxin Machinery's solution allows simultaneous or sequential feeding of aggregates via the belt, bypassing the conveying process and fundamentally ensuring metering accuracy and reliability.
- Maximizing Functionality: These functional materials are dispersed within the pre-formed slurry within the main unit, enabling them to more quickly and evenly exert their specific functions of improving flowability, compensating for shrinkage, and adjusting viscosity, achieving a "1+1>2" compound effect.
- Scientific Layout: Reduces the structural load and space pressure on the main unit building, making the overall layout more compact and easier to maintain.
Aggregate Base Area: Four Independent Silos Ensure Stable Grading
Equipped with four independent sand and gravel silos and weighing scales, each precisely measures two types of sand and two types of gravel (or, in this case, sand and stone).
- Stable Grading: Independent metering ensures that the aggregate gradation of each batch of concrete is highly consistent with the designed formula, with fluctuations strictly controlled within ±2%. This is the fundamental guarantee for concrete volume stability and mechanical properties.
- High Flexibility: The multi-bin design accommodates aggregates from different sources and particle sizes, greatly facilitating mix ratio optimization and raw material adaptability.
Core Advantages of Tongxin Machinery's Concrete Batching Plant
Tongxin Machinery's fully independent metering and batching plant solution offers value far beyond simply adding equipment:
- Peak Quality: Through the collaborative efforts of 11 metering units, precise control is achieved throughout the entire process, from macro-level aggregates to micro-level admixtures. The resulting concrete has extremely narrow performance fluctuations, providing rock-solid quality assurance for high-speed rail tunnels. - Model of Efficiency: Refined zoning and material feeding sequence design ensure seamless integration of batching, conveying, and mixing processes, significantly shortening mixing cycles and improving production efficiency, perfectly matching the rapid pace of continuous shield tunneling construction.
- Intelligent Future: This system provides a perfect hardware platform for subsequent intelligent mix ratio optimization and big data management, with robust future-proof scalability.
