Concrete batching plants operate under heavy cyclic loads, and their electrical power system forms the foundation for consistent output, controlled electricity expenses and extended equipment lifespan. Many international buyers focus only on mixer pricing and theoretical capacity while overlooking power matching. This oversight frequently triggers voltage sags, repeated circuit tripping, motor burnout and unplanned production stoppages — a problem especially common across Southeast and Central Asian sites with unstable grid infrastructure.
As an established manufacturer of concrete mixing equipment, Tongxin Machinery has accumulated extensive hands-on experience from hundreds of global projects. This article covers the complete HZS90 concrete batching plant power transformer selection, sizing standards, intelligent power optimization, a real-world Vietnam renovation case, and our end-to-end technical service framework.
Comprehensive Analysis of HZS90 Concrete Batching Plant Power Requirements and Energy Efficiency Optimization
For ready-mix concrete production, the power layout of an HZS90 batching plant directly shapes operational efficiency and running costs. Drawing on long-term industry practice, Tongxin Machinery develops well-calibrated power planning solutions that keep equipment running reliably while cutting power consumption and improving return on investment.
Equipment Power Configuration at a Glance
| Equipment | Specification | Rated Power |
|---|---|---|
| Mixing Host | JS1500 twin-shaft forced mixer, dual-motor drive | 2×30kW |

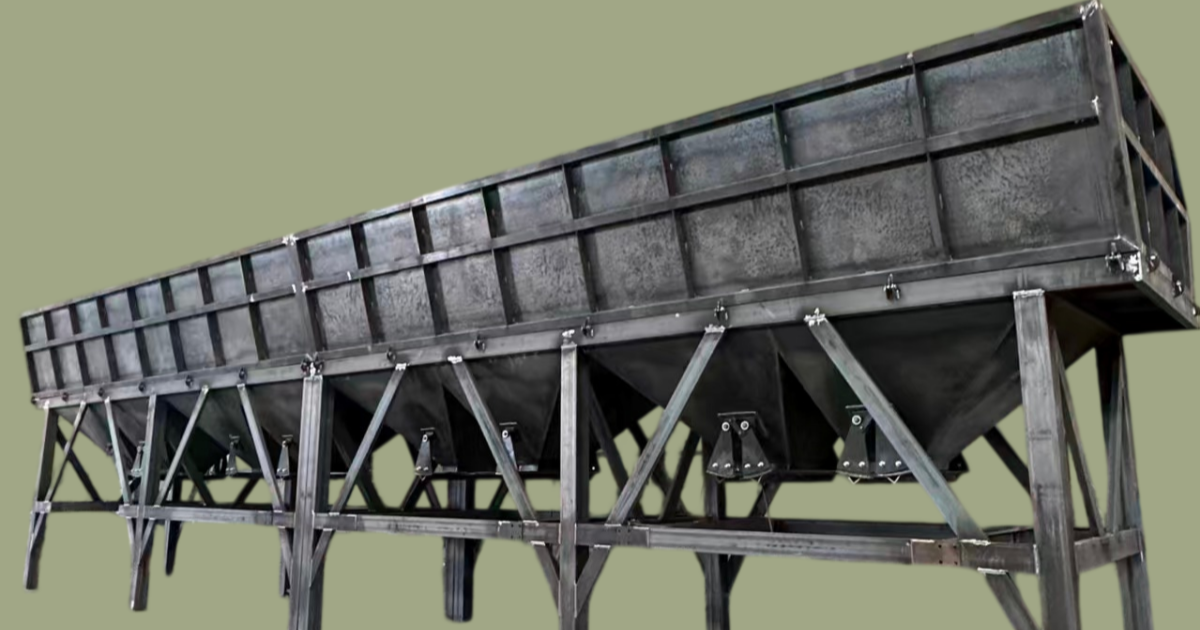

| Automatic Batching System | PLD2400 aggregate batcher | 7.5kW |
| Aggregate Belt Conveyor | Variable-frequency drive | 30kW |
| Screw Conveyors | 3 units for cement, fly ash and mineral powder | 3×11kW |
| Pulse Dust Removal System | Pulse jet dust collector | 6kW |
| Water Supply Pump | For batching water feeding | 3kW |
| Drainage Pump | For slurry and site wastewater discharge | 2.2kW |
| Admixture Metering Pump | Precision admixture dosing | 1.5kW |
| Screw Air Compressor | For pneumatic door actuation | 7.5kW |
| Control Cabinet & Site Lighting | PLC control system + site lighting | 5kW |
The table above lists every major electrical consumer on the plant. Every HZS90 concrete batching plant power transformer sizing starts from this load inventory, because a plant is only as stable as its heaviest starting motor.
Total Power Calculation and Load Analysis
Total installed rated power recommended by Tongxin Machinery: 155kW. Typical operating power: 108–124kW, based on a simultaneity factor of 0.7–0.8, as not all motors run at full load at the same moment. We also recommend a 200kW design capacity reserve, which absorbs peak startup inrush current and leaves room for future equipment expansion.
HZS90 Concrete Batching Plant Power Transformer Selection: Expert Guidance
A properly matched transformer is the cornerstone of a stable power supply. Getting the HZS90 concrete batching plant power transformer right from day one avoids costly retrofits later. An undersized transformer regularly trips under overload, while an oversized unit creates unnecessary no-load losses and inflates upfront capital outlay. Below are three mainstream configurations tailored for HZS90 concrete batching plants under different site conditions.
Scientific Selection Scheme
| Working Condition | Recommended Capacity | Applicable Scenarios | Advantages |
|---|---|---|---|
| Basic Production Configuration | 200kVA | Standalone operation of one HZS90 batching plant | Cost-effective, balanced investment |
| Standard Complete Configuration | 250kVA | Production equipment plus on-site offices and staff accommodation | Ample expansion headroom, consistent load performance |
| High-standard Environmental Protection Configuration | 315kVA | Full setup including upgraded dust collection and slurry recycling systems | Supports compliant green production for strict local emission codes |
Key Technical Requirements for Selection
- Voltage rating: 380V±10%, 50Hz, aligned with Chinese GB standards and compatible with most Southeast Asian and Central Asian grids with matching transformation accessories.
- Capacity margin: Reserve 20–25% extra capacity to absorb high startup peak currents.
- Energy efficiency class: Prioritize Class 1 energy efficiency transformers to minimise no-load power waste.
- Environmental suitability: Specify sealed, dust-proof, moisture-resistant or high-altitude custom models according to local climatic conditions.
Important note: transformer capacity is rated in kVA (apparent power), while motor ratings refer to active power (kW). A low power factor can push a transformer to its load limit even when total kW draw remains moderate. We strongly advise pairing the transformer with a reactive power compensation cabinet.
Power System Optimization and Intelligent Management
Selecting the correct transformer is only the first step. Sustainable cost control and reliable operation depend on holistic power system optimisation and intelligent supervision.
Energy Saving Solutions
Tongxin Machinery offers customisable energy-saving retrofits for mixing stations:
- Intelligent load scheduling system: Staggers motor startup and operation to smooth peak demand.
- Reactive power compensation unit: Automatic regulation maintains power factor above 0.95, avoiding utility reactive power surcharges.
- Variable frequency drive (VFD) technology: VFDs fitted to high-power equipment deliver 30–40% energy savings under regular production cycles.
- Energy management platform: Captures real-time power consumption data, allowing operators to adjust production schedules and avoid high-tariff electricity windows.
Comprehensive Safety Protection
- Multi-layer motor branch protection: Overload, short-circuit, phase-loss and undervoltage trip functions.
- Lightning protection and earthing system: Full-site lightning mitigation design with maximum earthing resistance ≤4Ω.
- Backup emergency power system: Fast transfer switch prevents mixer blockage and material spoilage during grid outages.
- Intelligent remote monitoring platform: Cloud-based real-time status tracking and predictive fault alerts to reduce unplanned downtime.
Real Case: HZS90 Batching Plant Power Retrofit Project in Vietnam
This representative overseas project illustrates the risks of under-sizing electrical infrastructure at the design stage.
Project Background
An HZS90 batching plant supporting local infrastructure works in Vietnam relied on an undersized 125kVA transformer, a classic HZS90 concrete batching plant power transformer mistake made to cut initial procurement costs.
On-site Challenges
- Severe voltage instability: A 15% voltage drop triggered every time the main mixer started.
- Frequent protective tripping: Circuit protection activated repeatedly during multi-equipment concurrent operation.
- Disrupted production: More than 8 unplanned shutdowns on average each month.
- Permanent equipment damage: Recurrent motor burnout caused by unstable supply voltage.
Technical Retrofit Delivered by Tongxin Machinery
Our engineering team completed on-site power quality testing and implemented a targeted turnkey upgrade:
- Transformer upgrade: Replaced the original unit with a 200kVA Class 1 energy efficiency transformer.
- Distribution redesign: Rewired the power layout with independent dedicated circuits for heavy-load equipment.
- Control enhancement: Installed soft starters and variable frequency drives to suppress starting inrush current.
- Protection upgrade: Recalibrated and reinforced the full electrical protection suite.
Measurable Outcomes After Retrofit
- Production efficiency improved by 35%.
- Overall energy consumption reduced by 28%.
- Zero unplanned shutdowns recorded after commissioning.
- Markedly extended service life for motors and electrical components.
This case demonstrates that trying to save capital by downsizing the transformer almost always leads to far higher costs from maintenance, delays and lost output — especially at sites with weak grid stability.
Professional Technical Service Support System
We deliver full-lifecycle support for concrete batching plant operators, covering pre-sales consultation, project execution and long-term operation and maintenance.
Pre-consultation
- Complimentary site assessment: Review terrain, grid stability, material yard layout and environmental compliance requirements.
- Custom solution design: Tailor plant layout, power configuration and equipment combinations.
- Investment return analysis: Calculate capital expenditure, operating costs, achievable output and payback timeline. For additional reference, read our companion article: HZS75 actual output analysis.
Implementation Support
- Equipment selection consultancy: Help clients avoid both over-specification and insufficient power sizing.
- Installation and commissioning guidance: Supply civil drawings, remote video support or on-site overseas engineer attendance.
- Operator training: Practical sessions covering startup sequences, parameter tuning and basic fault diagnosis.
Operation & Maintenance
- Remote monitoring assistance: Cloud platform access for live operational metrics, energy tracking and remote fault diagnostics.
- Global technical hotline support.
- Expedited supply of genuine wear parts: Mixing blades, liner plates, sensors and shaft seals.
- On-site upgrade services: Power system retrofits, VFD conversions and environmental upgrades for existing mixing plants.
Frequently Asked Questions
What is the total installed power of an HZS90 concrete batching plant?
The standard total installed rated power is 155kW. With a simultaneity factor of 0.7-0.8, the typical running load falls between 108kW and 124kW.
What size of HZS90 concrete batching plant power transformer should I select for a standalone plant?
For production-only standalone use, a 200kVA Class 1 energy efficiency transformer is recommended. If the site includes staff quarters, offices and full environmental hardware, choose 250kVA or 315kVA.
Why does my HZS90 plant trip every time the mixer starts?
The most common causes are an undersized transformer, overly long power cables, excessive starting inrush current, low power factor or poorly designed circuits. Fitting soft starters or VFDs, or upgrading the transformer, usually resolves the issue.
How much power can I save by installing variable frequency drives?
When high-power machinery is retrofitted with VFDs alongside reactive power compensation, energy savings of 30-40% are achievable under consistent continuous production.
Can I use a 125kVA transformer for an HZS90 batching plant?
We do not recommend this, particularly in regions with weak grids such as Vietnam. As shown in our case, a 125kVA unit cannot withstand the mixer’s startup load, resulting in large voltage drops, tripping and motor failure.
What earthing resistance is required for the mixing plant’s lightning protection system?
The specification requires an earthing resistance ≤4Ω to safeguard control cabinets, motors and automation hardware against lightning surges.
Final Summary
Power system design must be considered from the outset for any HZS90 concrete batching plant. Accurate load calculation, correctly sized transformers, variable frequency control and reactive power compensation work in tandem to secure reliable throughput and lower electricity bills. For overseas projects with unreliable grid supply, adequate capacity margin and robust protection arrangements are critical. Choosing the right HZS90 concrete batching plant power transformer — and pairing it with VFDs and reactive compensation — is the single most cost-effective upgrade for plant owners.
